Detail produk:
|
| Nomor Bagian: | IXGH36N60B3C1 | Pabrikan: | IXYS |
|---|---|---|---|

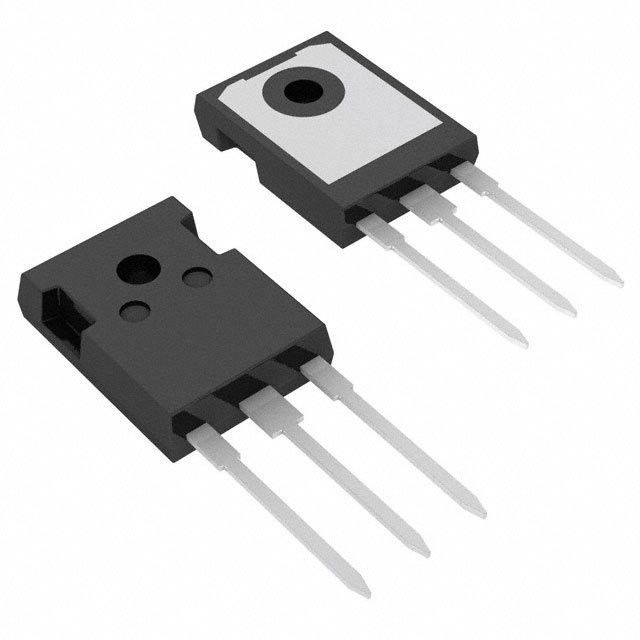

| Keterangan: | IGBT 600V 75A 250W TO247 | kategori: | Transistor - IGBT - Tunggal |
| Keluarga: | Transistor - IGBT - Tunggal | Seri: | GenX3™ |
| Part Status | Active |
|---|---|
| IGBT Type | PT |
| Voltage - Collector Emitter Breakdown (Max) | 600V |
| Current - Collector (Ic) (Max) | 75A |
| Current - Collector Pulsed (Icm) | 200A |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 30A |
| Power - Max | 250W |
| Switching Energy | 390µJ (on), 800µJ (off) |
| Input Type | Standard |
| Gate Charge | 80nC |
| Td (on/off) @ 25°C | 20ns/125ns |
| Test Condition | 400V, 30A, 5 Ohm, 15V |
| Reverse Recovery Time (trr) | - |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247AD (IXGH) |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
Kontak Person: Darek
Tel: +8615017926135
