Detail produk:
|

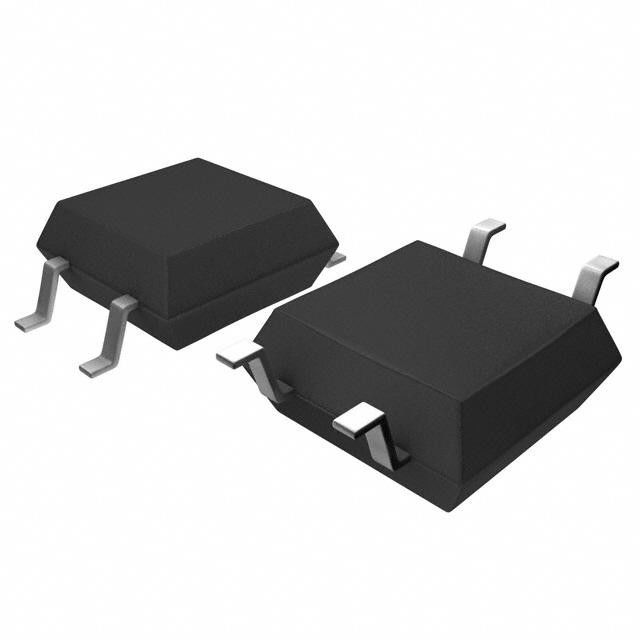

| Nomor Bagian: | FODM3011_NF098 | Pabrikan: | Fairchild/ON Semikonduktor |
|---|---|---|---|
| Keterangan: | OPTOISOLATOR 3.75KV TRIAC 4SMD | kategori: | Optoisolator - Triac, Keluaran SCR |
| Keluarga: | Optoisolator - Triac, Keluaran SCR |
| Part Status | Obsolete |
|---|---|
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 250V |
| Static dV/dt (Min) | 10V/µs (Typ) |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - On State (It (RMS)) (Max) | 70mA |
| Current - Hold (Ih) | 300µA (Typ) |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Current - DC Forward (If) (Max) | 60mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-Mini-Flat |
| Approvals | cUR, UR |
| Shipment | UPS/EMS/DHL/FedEx Express. |
| Condtion | New original factory. |
